Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm

Name: Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Brand: SINOWON
Price: 1 USD

Brand Name : SINOWON

Model Number : VP300-2010Z

Certification : CE

Place of Origin : China

MOQ : 1 set

Supply Ability : 100 sets per month

Delivery Time : 10 days

Packaging Details : Plywood, 780x530x1150mm

Metal Stage Size : 350x170mm

Stage Travel: X and Y-axis : 200x100mm

Accuracy : ≤3+L/200(um)

Gross/Net weight : 220/170kg

Stage Travel: Z-axis : 100mm (for focusing)

Digital Readout : DP 300 (561-301) Multifunctional Data Processing System

Power Supply : AC110V/60Hz; 220V/50Hz,650w

Dimension(L×W×H) : 780x530x1150mm

Packing Dimension : 990x765x1340mm

Contact Now

Obverse Image Vertical Optical Profile Projector 200x100mm Stage Travel Ø300mm

Technical Specifications:

Reverse Image	VP300-2010
Obverse Image	P300-2010Z
Metal Stage Size	350x170mm
Glass Stage Size	246x120mm
Stage Travel: X and Y-axis	200x100mm
Stage Travel: Z-axis	100mm (for focusing)
Accuracy	≤3+L/200(um)
Resolution of X and Y-scale	0.0005mm
Screen	Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)
	Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout	DP 300 (561-301) Multifunctional Data Processing System
Illumination	Surface and Contour Illumination:24v/150w halogen lamp (adjustable);
Cooling System	Forced Cooling (3-axis-fans)
Power Supply	AC110V/60Hz; 220V/50Hz,650w
Dimension(L×W×H)	780x530x1150mm
Packing Dimension	990x765x1340mm
Gross/Net weight	220/170kg

Standard Delivery:

Product Name	Code #	Product Name	Code #	Product Name	Code #
Digital Readout DP400	510-340	10x Objective	511-W11	Screen Clamp Device	581-341
Built-in Mini-printer	581-901	Transmitted lens	511-T11	Operation Manual	VT12

Product Features :

300mm diameter screen with digital protractor;

Double steel guide for stage lifting focus system;

Halogen profile and surface illumination adjustable;

Geometric multifunctional data processing system upgrade to DRO DP400;

Built-in Mini-printer;

Available 10x,20x,50x,100x objective, rotary table, edge detector, etc.

Optional Accessories:

Product Name	Code #	Product Name	Code #	Product Name	Code #
Measuring Software	581-101	Rotary Table RT1	581-511	Rotary Table RT2	581-521
20x Objective	511-W21	50X Objective	511-W31
Holder Clamp	581-841	V-shape Clamp	581-831	Swivel Center Support	581-851
Working Cupboard ST 02	581-621	Over-Chart ST 140	581-311	Foot-Switch ST 150	581-351
Printer Paper	581-911	Edge Detector SED-300	581-301	Standard Block ST120	581-801

Product Tags:

Digital Profile Projector

Vertical Profile Projector

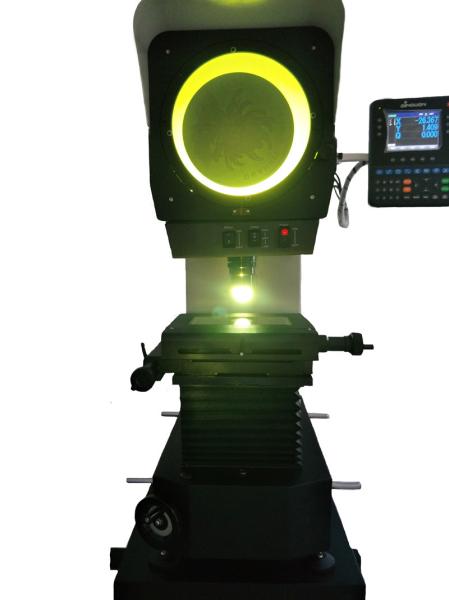

Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm Images
