Motorized Turret Digital Vickers Micro Durometer Hardness Tester with Color Touch screen Bluetooth Data Transfer
Quick Detail:
| Name | Micro hardness tester | Display | 5 inch touch screen display |
| Hardness Conversion | HRC, HRA, HBW, HK, etc | Hardness Range | 1HV~2967HV |
| Data Transfer | Bluetooth；RS232 is optional | Certificate | CE,RoHS, FCC, ISO9001 |
1. Characteristics:
● Equips with Auto Turret, key panel and touch screen double input methods, blue tooth transferring
technology, max loading force at 1Kgf (Vicky MHV-1000).

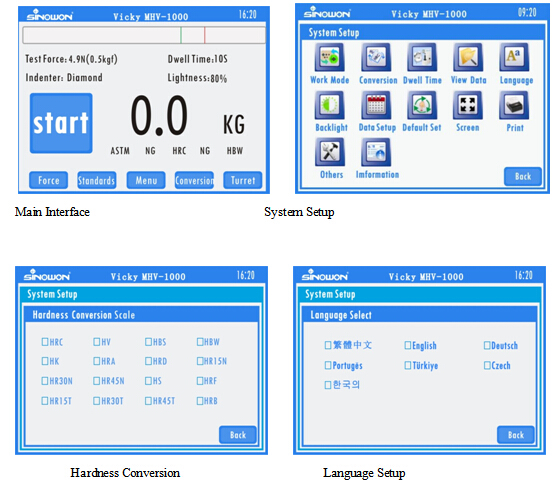

● 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale
conversion and data reading, transferring, printing more convenient and fast.
● Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of
objectives, indenter and force system by manually operation.
● One touch operation of diagonal line by high resolution measurement/observation objectives and built-in
length encoder high definition digital eyepiece.
● Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell
scales, etc.
● Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize
wireless printing and data transferring.
● Abundant optional auxiliary devices to make hardness measurement more automated and eliminate
human operation error. MV series vickers software is recommended, includes USB camera, C-mount
adapter and computer.
2. Application Range:
* Testing very thin materials like foils, thin pieces, coatings layers, etc;
* Measuring hardness of the surface of a part, small parts or small areas;
* Measuring individual micro-structures;
* Measuring the depth of case hardening by sectioning a part and making a series of indentations to
describe a profile of the change in hardness.
3. Technical Specifications:
| Name | Color Touch Screen Digital Micro Vickers Hardness Tester |
| Model | Vicky MHV-1000 |
| Code# | 823-160 |
| Loading Force | N | 0.098,0.246,0.49,0.98,1.96,2.94,4.90,9.80 |
| gf | 10,25,50,100,200,300,500,1000 |
| Lens & Indenter Switch | Auto Turret |
| Data Transfer | Bluetooth；RS232 is optional |
| Hardness Resolution | 1HV |
| Measuring Range | 1HV~2967HV |
| Loading Control | Auto Loading, Dwell and Unloading |
| Magnification of Objective | Observation:10x/40x；Measurement:10x/40x |
| Hardness Conversion | HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,
HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB |
| Eyepiece | 10x Digital Eyepiece |
| Dwell Time | Adjustable 5~60s |
| X-Y Anvil | Size:100*100mm；Travel:25*25:Resolution:2um |
| Illumination | LED Cold Light(Brightness adjustable) |
| Display | 5.2" Touch Screen, Resolution 640*480 |
| Conversion Standard | ASTM,DIN |
| Language | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Max Height of Specimen | 70mm |
| Instrument Throat | 95mm |
| Power Supply | AC220V/50Hz |
| Dimension | 478*162*518mm |
| Packing Dimension | 500*490*700mm |
| Gross/Net Weight | 45kg/35kg |
| Executive Standard | GB/T4340,JIS Z2245,ASTM—E92,ISO6507 |
4. Standard Delivery
| Name | Code# | Name | Code# | Name | Code# |
| Vickers Indenter | 823-401 | X-Y Anvil | 823-701 | Power Cable | 823-801 |
| Objective 10x | 823-311 | Objective 40x | 823-341 | Accessory Case | 823-901 |
| Digital Eyepiece 10x | 823-301 | Vickers Hardness Block HV1 | 823-618 | Level | 823-931 |
| Vickers Hardness Block HV0.5 | 823-628 | Anti Dust Cover | 823-911 | Operation Manual | Vicky MHV-1000
|
