SI-200D Chain Clamp Rockwell Portable Hardness Testing Equipment Testing Pipe / Shaft / Roller

Guangdong Hoyamo Precision Instrument Limited
Contact Now

SI-200D Chain Clamp Rockwell Portable Hardness Testing Equipment Testing Pipe / Shaft / Roller

Brand Name : Sinowon

Model Number : SI-200D

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, CIF,CFR,FOB

Supply Ability : 100 SETS PER MONTH

Delivery Time : 10 DAYS

Packaging Details : CARTON

Initial Test Force : 10kg

Total Test Force : 60kg, 100kg, 150kg

Force Applying Method : By screw

Indenter : 120°diamond cone Ф1.588mm carbide ball

Accuracy : Meets the requirements of ISO6508

Resolution : 0.5HR

Contact Now

SI-200D Chain Clamp Rockwell Portable Hardness Testing Equipment Testing Pipe / Shaft / Roller

SI-200D Chain Clamp Rockwell Portable Hardness Testing Equipment Testing Pipe / Shaft / Roller

Features:

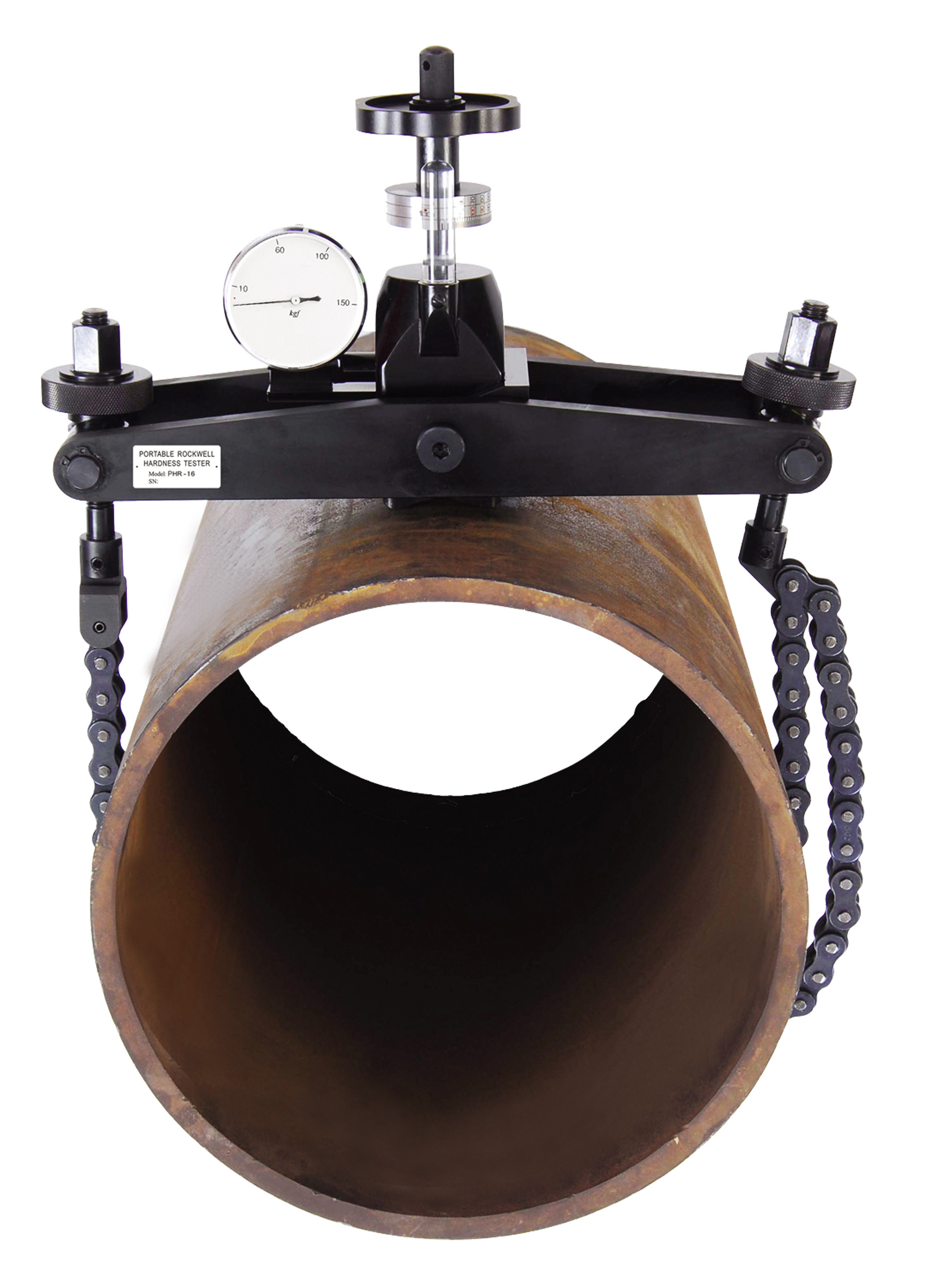

● Used for testing the hardness of large pipes and shafts accurately on-site.
● The test principle and accuracy comply to standard ISO6508 and ASTM E110. Tested by National Institute of Metrology with tolorance <1.5HRC, equivalent to bench hardness tester.
● Chain fastened around the workpiece before the force is applied.
● Reliable stability,good repeatability and high accuracy.
● Tests the hardness of cylindrical workpieces such as pipes, shafts, rollers etc.,tests on the welding line;tests in segments.
● Used for manufacturing inspection and acceptance inspection to replace Leeb hardness tester with lower accuracy.
● Traceable standard hardness block.
● Indenter inspected with standard Rockwell hardness tester.
● Test force calibrated with load cells directly traceable to national secondary benchmark

Specifications:

Product Name

Chain Clamp Portable Rockwell Hardness Tester

Model(Code#)

PHR-16(#812-413)

Initial Test Force

10kg

Total Test Force

60kg, 100kg, 150kg

Force Applying Method

By screw

Indenter

120°diamond cone Ф1.588mm carbide ball

Accuracy

Meets the requirements of ISO6508

Resolution

0.5HR

Testing Range

HRA, HRB,HRC, etc. 15 scales

Application

All metals including iron, steel copper, Aluminium etc.
